FLOOR AC 6380

DEFINITION

Epoxy top layer paint for concrete surfaces with two-components and solvent

USAGE AREAS

It is an Epoxy top layer paint with high mechanical endurance and wear resistance, easy to clean and can be used in factories, assembly workshops, depots, aircraft hangers, store, auto-park, food facilities, hospitals, chemical and drug industry, energy power plants, all industrial floors and walls.



Type

TS EN 1504-2/April 2008 Principle 5(PR): 5.1 Physical Resistance / Surface Improvement Coating Application C

Color

RAL colors

Appearance

Semi lustrous

Thinner

Epoxy Thinner

Solid Matter by Weight, %

67

Density

1,40 g/cm³

Waste

In 2 coats 400 – 500 gr/m²

Package

20 kg A Component+ 5 kg B Component: Total 25 kg

Flash Point

>25 °C

Mixing Ratio

4 / 1

Application Methods

Brush, Roller, Air Gun, Airless Gun

Mixture Life

1,5-2 hours / 25°C

Shelf Life

1 year

Waiting time between coating

6 hours / 25°C

Drying Time

8 hours/ 25°C

Mechanical Strength

7 days

Equipment Cleaning

Epoxy Thinner

SURFACE PREPARATION

The surfaces to be primed need to be cleared of all types of rust, roller shell, dirt, dust, oil and grease. Sand blasting at least SA 2½ level, in accordance with the Swedish standard SIS 05 59 00, is especially suggested for surface cleaning. For surface roughness, abrasives should be used to provide Medium G 30-85 micron level and meet ISO 8503-2.

MIXTURE PREPARATION

Using a low speed mixer, it should be mixed for at least 3-4 minutes to attain an homogeneous mixture while paying attention to A and B component mixture rates. It is ready for application after mixing.

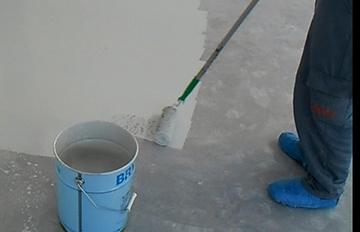

COATING SYSTEM

It can be applied using a brush, roller or blasting. In application using blasting, thinner is used for thinning. The paint thinned at20°C for 18-20 secs to /DIN CUP4/ viscosity can be applied on metal using a gun to provide 35-40 micron dry film. The mixture prepared by brush or roller does not need thinning before moving on to application.

APPLICATION CONDITIONS

*Application should be avoided below 5°C and in extremely humid conditions

* Yellowing may occur when subjected to direct sunlight however it doesn’t

* adversely impact the product’s prevention performance.

Products suggested to be used under this product:

* PRIMER SC 215 Epoxy Primer without solvent

* PRIMER SC 270 Low viscosity Epoxy Impregnated Prime
