SEAL SC 2000 • Coal Tar Modified Solvent-Free Epoxy Liquid Insulation Membrane
Two-component, solvent-free epoxy resin-based, coal tar modified liquid insulation membrane.
Product Description:
This is a two-component, solvent-free, epoxy resin-based, coal tar-modified, high-performance liquid insulation membrane. It provides superior insulation and protection against water, moisture, salt water, groundwater, and aggressive chemicals on concrete and steel surfaces.
Thanks to its solvent-free structure, it forms a thick film layer and exhibits strong adhesion to the surface. It penetrates cracks in concrete surfaces, supporting structural integrity and acting as a binder.
It integrates with the applied surface, forming an inseparable layer. It is unaffected by internal and external pressures and does not blister or detach from the surface. By preventing water ingress into the concrete, it prevents corrosion of reinforcement and extends the service life of the structure.
Areas of application:
- Basement and foundation insulation
- Surfaces of curtain walls and load-bearing columns
- Ponds, piers, and bridge abutments
- Septic and wastewater structures
- Concrete surfaces exposed to groundwater pressure
- Concrete floors of oil storage tanks
- Chemical storage areas
- Structures exposed to saltwater
Key Features:
- Solvent-free, high film thickness
- Coal tar modified heavy-duty protection
- Penetrates concrete cracks
- Resistant to internal and external water pressure
- Does not peel or blister from the surface
- Resistant to salt water
- High resistance to chemicals
- Prevents reinforcement corrosion
- Prevents oil and its derivatives from seeping into the ground
|
Type |
TS 11589 |
|
Colour |
Dark Brown |
|
Outlook |
Matt |
|
Solid Matter by Weight, % |
100 |
|
Density |
1,40 g/cm³ |
|
Waste |
0,500-1,500 kg / m2 |
|
Package |
16 kg A Component + 8 kg B Component:Tottal 24 kg |
|
Flash Point |
>25 °C |
|
Mixture Ratio |
2 / 1 |
|
Application Methods |
Brush, Roller, Trowell, Airless Gun |
|
Mixture Life |
30 min / 25°C |
|
Shelf Life |
1 year |
|
Waiting Time Between Coats |
12 hours / 25°C |
|
Drying Time |
12 hours / 25°C |
|
Mechanical Strength |
7 days |
|
Equipment Cleaning |
Epoxy Thinner |
* The surfaces to be applied must be free from oil, dust, and dirty. Free parts on the surface, cement grout on concrete surfaces and parts that prevent adhesion must be cleaned.
MIXING PREPARATION

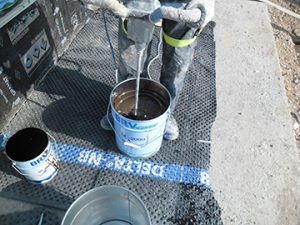

A and B component should be mixed with a low speed mixer for at least 3-4 minutes until a homogenous mixture is obtained by paying attention to mixture ratios. It is ready for application after mixing.
COATING SYSTEM
Prepared homogeneous mixture must be thoroughly poured onto the surface with roller or a suitable brush and it is applied to close the pores. If desired, it can be applied with air and airless gun. Carrier fiber application is recommended where water pressure is high. 7 days after it becomes resistant to chemicals. Screed, concrete, ceramic tile etc. can be easily laid on it. Before Seal SC 2000 epoxy coal tar modified liquid insulation membrane must completes its curing before top coat coating is started.
APPLICATION CONDITIONS
* Surface should have sufficient strength. The concrete should have a compressive strength of at least 25 N/mm² and a tensile strength of at least 1,5 – 2 N/mm².
* Surfaces must be clean, smooth and dry. Humid is not pass 5%. If the humidity is above this ratio, SC 220 Epoxy Prime for Humid Surfaces should be preferred.
* Before Seal SC 2000 epoxy coal tar modified liquid insulation membrane is started, SC 220 Epoxy Primer for 100% Humid Surfaces must completes its curing..
* Avoid application in very humid environments and below 10°C.
* Mixing ratios should be considered.
