BRV SC 315 • Epoxy Repair, Anchoring and Mounting Mortar
Two-component, solvent-free epoxy resin-based, thixotropic repair, anchoring, and mounting mortar.
Public Works Item No: 04.379/H05
Product Description:
This is a two-component, solvent-free epoxy resin-based repair, anchoring, and mounting mortar with a thixotropic structure. It is developed for applications requiring high adhesion, mechanical strength, and dimensional stability.
Thanks to its thixotropic formula, it provides safe use in vertical and overhead applications without sagging. It exhibits excellent adhesion to cracks and voids, integrating with the surface and offering high compressive, tensile, and bonding strength after curing.
It does not shrink in volume and maintains its stability under heavy loads and vibrations. It provides strong adhesion to various building materials such as concrete, metal, and ceramics. It can be safely used in structural reinforcement and mounting applications.
Areas of application:

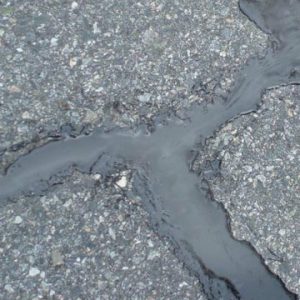

- Repair and insulation of concrete cracks
- Fixing of anchor elements
- Bonding of ceramic, metal, steel and concrete components
- Installation of expansion joint tapes

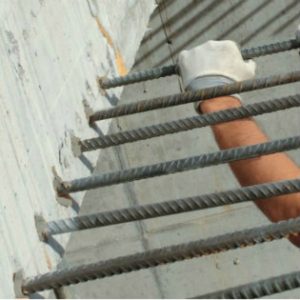

- Rebar insertion applications
- Surface preparation before carbon fiber and aramid fiber lamination
- Areas requiring structural reinforcement
- Vertical and overhead applications
Öne Çıkan Özellikler:
- Thixotropic structure – does not sag on vertical surfaces
- High adhesion and mechanical strength
- Strong adhesion to concrete, steel, ceramic and metal surfaces
- Does not shrink in volume
- Resistant to heavy loads and vibrations
- Solvent-free and safe application
- Compatible with structural reinforcement systems
|
Type |
TS EN 1504-6 |
|
Colour |
Gray |
|
Outlook |
Matt |
|
Solid Matter by Weight, % |
99 |
|
Density |
1,80 g/cm³ |
|
Package |
4,50 kg A Component + 1,50 kg B Component = Total 6 kg |
|
Mixture Ratio |
3 / 1 |
|
Application Methods |
Craper, Trowell |
|
Mixture Life |
50 min/ 25°C |
|
Shelf Life |
1 year |
|
Waiting Time Between Coats |
12 hours / 25°C |
|
Drying Time Bending Strength Elasticity Module Adhesion Strength (Steel) (Breaking from concrete) Pressure Strength |
12 hours / 25°C At 20°C min. 30-40 N/mm2 (10 Days) 4´300 N/mm² 15 N/mm2 (10 Days) 4 N/mm2 (10 Days) At 20°C min.60-70 N/mm2 (10 Days) |
SURFACE PREPARATION
Free particles and paint residues on the surface must be thoroughly cleaned, brokens and cracks must be repaired, surfaces should be roughened and cleaned from vacuum with vacuum cleaner.
MIXING PREPARATION
A and B component should be mixed with a low speed mixer for at least 3-4 minutes until a homogenous mixture is obtained by paying attention to mixture ratios. It is ready for application after mixing.
APPLICATION CONDITIONS
<p* 1,5=”” 25=”” <p=”” a=”” and=”” at=”” compressive=”” concrete=”” have=”” least=”” mm²=”” mm².=”” n=”” of=”” should=”” strength=”” strength.=”” sufficient=”” surface=”” tensile=”” the=””>* Avoid application in very humid environments and below 5°C.
* Mixing ratios should be considered.
</p*>
* Solvent free
* Easy to use
* Use on vertical surfaces without sagging
* Excellent adhesion to metal, steel and concrete.
* Chemical resistance.
* Mechanical strength.
* Provides strong adherence between metal and concrete.
*During the sowing sprout, it is easily wrapped to iron and provides anticorrosive protection.
